Tempco - Series KTE Quartz Translucent Mini-Tube Infrared Heaters

Product Description

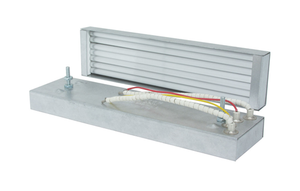

The KTE E-Mitters have a highly reflective, rugged aluminized steel housing construction. The standard winding pattern gives uniform heating over the entire face of heater. Consult factory for custom or high intensity winding patterns and/or sizes. An optional built-in type K or J T/C available in center of unit face.

Specifications:

Series KTE1, KTE2, KTE3, KTE4, KTE5 - Style C

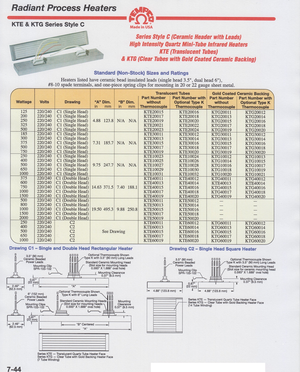

  • Single Head Rectangular Dimensions: A = 4.88" (123.8 mm) - B = 2.46" (62.5 mm) to A= 9.75" (247.7 mm) - B = N/A.  See reference page 7-44 for Drawing C1, standard (non-stock) sizes, and ordering information.
  • Double Head Rectangular Dimensions: A = 4.88" (123.8 mm) - B = N/A to A= 9.75" (247.7 mm) - B = N/A.  See reference page 7-44 for Drawing C1, standard (non-stock) sizes, and ordering information.
  • Single Head Square Dimensions: See reference page 7-44 for Drawing C2, standard (non-stock) sizes, and ordering information.
  • Heater Voltage Range: 220/240V
  • Heater Wattage Range: 100W - 2000W

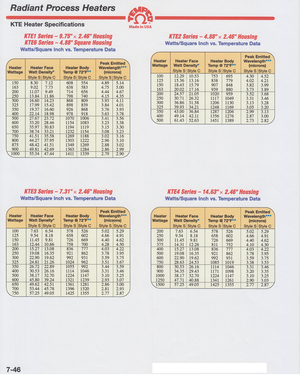

  • Temperature Range: 526 °F (274 °C) - 1389 °F (754 °C) For additional temperature specifications, see reference page 7-46 for the Series KTE1, KTE2, KTE3, KTE4, and KTE6.  For Series the KTE5, see reference page 7-47.
  • Thickness: Standard - 0.87" (22 mm)
  • Watt Density: 5.29 w/in2 - 49.04 w/in2.  For additional watt density specifications, see reference page 7-46 for the Series KTE1, KTE2, KTE3, KTE4, and KTE6.  For the Series KTE5, see reference page 7-47.
    • Wavelength Range: Between 2.82 and 5.29 microns (μm).
    • Thermocouples: Series Style C Translucent and Gold Coated thermocouple options.  See reference page 7-44 for additional information.
    • Electrical Terminations: Lead wire with ceramic beads.  Standard beaded length is 3.5" to 6.0".  For additional length please contact our technical support staff (844-862-7880) for assistance.

    Series KTE1, KTE2, KTE3, KTE4, KTE5 - Style S

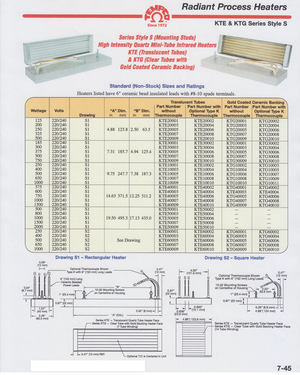

    • Rectangular Heater Dimensions: A = 4.88" (123.8 mm) - B = 2.5" (63.5 mm) to A = 19.5" (495.3 mm) - B = 17.13" (435.0 mm).  See reference page 7-45 for Drawing S1, standard (non-stock) sizes, and ordering information.
    • Square Heater Dimensions: See reference page 7-45 for Drawing S2, standard (non-stock) sizes, and ordering information.
    • Heater Voltage Range: 220/240V
    • Heater Wattage Range: 125W - 2000W

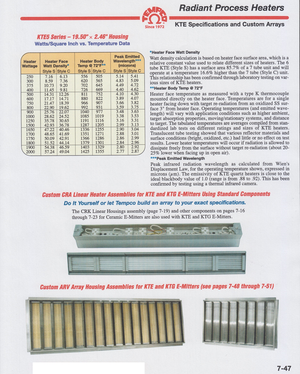

    • Temperature Range: 556 °F (291 °C) - 1451 °F ( 788°C).  For additional temperature specifications, see reference page 7-46 for the Series KTE1, KTE2, KTE3, KTE4, and KTE6.  For Series the KTE5, see reference page 7-47.
    • Thickness: Standard - 0.87" (22 mm)
    • Watt Density: 7.16 w/in2 - 61.43 w/in2.  For additional watt density specifications, see reference page 7-46 for the Series KTE1, KTE2, KTE3, KTE4, and KTE6.  For the Series KTE5, see reference page 7-47.
      • Wavelength Range: Between 2.73 and 5.14 microns (μm).
      • Thermocouples: Series Style S Translucent options.  See reference page 7-45 for additional information.
      • Electrical Terminations: Lead wire with ceramic beads.  Standard beaded length is 3.5" to 6.0".  For additional length please contact our technical support staff (844-862-7880) for assistance.

        /Tempco/Data-Assets/07-Infrared-Images/WebR508.jpg

        Design Features:

        • Translucent tubes

        • Standard industry sizes and ratings up to 60 w/in2 (Interchangeable with CRCCRBCRN, and CRZ ceramic heaters).
        • Highly reflective rugged aluminized steel housing construction.
        • Rapid response - 2.5 to 7.5 °F / Sec. Heat Up / Cool-down rates, and depending on unit watt density.
        • Medium wavelength output (2.5 - 6 microns).
        • Standard winding pattern gives uniform heating over entire face of heater.  (Consult factory for custom or high intensity winding patterns and/or sizes.)
        • Optional built-in type K or J thermocouple available in center of unit face.
        • Ideal for systems requiring small area zoning and close control of process.
        • Best when used at radiation distances of 4 - 10" from work.
        • Suitable for horizontal or vertical operation with tubes in horizontal plane.
        • Designed for use in CRA linear structural housings and ARV array assemblies.
        • 120V, 208V, 240V, 277V, or 480V design (consult factory for 575V units).

        Series KTE - Type ARV Panel Arrays

        /Tempco/Data-Assets/07-Infrared-Images/WebR633.jpg

        Series KTE1 Panel Arrays:

        • The Number of Rows will determine the Housing Width. For overall width add 1.50" (for the mounting lips).
        • The Number of Columns will determine the Housing Length. For overall length add 1.50" (for the mounting lips).

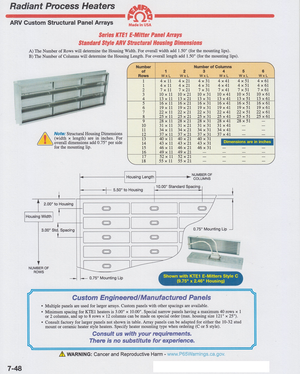

        • See reference pages 7-48, 7-49, and 7-50 for a complete listing of ARV structural housing dimensions.
        • See reference page 7-51 for a ARV Array Panel design worksheet and order form.

        Shown with KTE1 E-Mitters (9.75" x 2.46" Housing)

        Series KTE2 Panel Arrays:

        • The Number of Rows will determine the Housing Width. For overall width add 1.50" (for the mounting lips).
        • The Number of Columns will determine the Housing Length. For overall length add 1.50" (for the mounting lips).

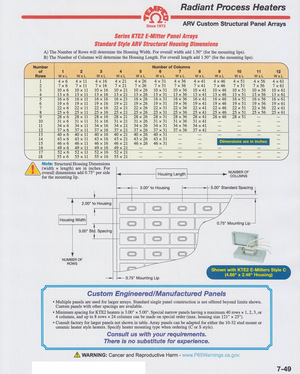

        • See reference page 7-49 for a complete listing of ARV structural housing dimensions.
        • See reference page 7-51 for a ARV Array Panel design worksheet and order form.

          Shown with KTE2 E-mitters (4.88" x 2.46" Housing)

          Series KTE3 Panel Arrays:

          • The Number of Rows will determine the Housing Width. For overall width add 1.50" (for the mounting lips).
          • The Number of Columns will determine the Housing Length. For overall length add 1.50" (for the mounting lips).

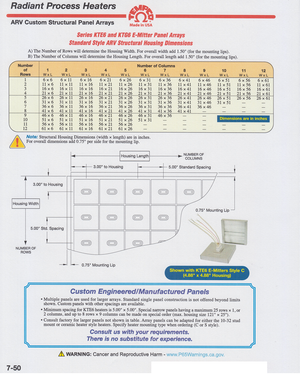

          • See reference page 7-50 for a complete listing of ARV structural housing dimensions.
          • See reference page 7-51 for a ARV Array Panel design worksheet and order form.

            Shown with KTE6 E-mitters (4.88" Square Housing)

            Series KTE - Type CRA Linear Housings

             /Tempco/Data-Assets/07-Infrared-Images/WebR636.jpg

            • Extruded aluminum housing
            • Series Elements pre-wired to terminal blocks
            • Reflectors
            • Fully assembled, ready to install, with mounting hardware
            • 1/2" trade size wiring entrance at both ends
            • 40" 1000 Watt CRA10025 shown above

            Mounting Styles

            Style C - Double Ceramic Mount

            /Tempco/Data-Assets/07-Infrared-Images/WebR550.jpg



            Style C - Single Ceramic Mount

            /Tempco/Data-Assets/07-Infrared-Images/WebR741_left.jpg



            Style S - Studs

             /Tempco/Data-Assets/07-Infrared-Images/WebR803.jpg
