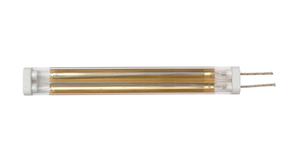

TEMPCO - Gemini™ Twin Bore Quartz Tube Medium Wave Infrared Heater

Product Description

Tempco has developed specialized coatings to control the directional nature of the infrared energy emitted from the Gemini twin bore heaters.  High levels of energy reflection are achieved by selectively bonding an integral high temperature coating to the half-hemisphere of the quartz tube surfaces facing away from the targeted surface.

The choice of a gold or white ceramic coating depends on the maximum operation temperature required in the heating system.  Also available is a clear 360° E-Mitter for use in applications that will employ external reflective or focusing surfaces around the heater.

Standard Versions

Performance Ratings

 Reflective Backing Gold
White Ceramic
Clear* (No Backing)
Maximum Coil Temperature 1472 °F (800 °C) 2012 °F (1100 °C) 2012 °F (1100 °C)
Peak Emitted Wavelength Range (Microns) 2.7 - 6.5 2.7 - 6.5 2.7 - 6.5
Radiation Pattern 180° 180° 360°
Nominal Reflected Heat Efficiency 95% 75% 0%

* Clear Tubes are designed for use with external reflector

Electrical Ratings

 Twin Bore Tube Size 18 x 8 mm 23 x 11 mm 33 x 15 mm
Maximum Power Density (Per unit length) 42.0 w/in2 (16.5 w/cm2 51.0 w/in2 (20.0 w/cm2 63.5 w/in2 (25.0 w/cm2
Maximum Voltage 480V 480V 600V
Maximum Amperage Per Circuit 9.5A 13.5A 20A

Design Features

  • Industry standard twin bore quartz tube formats with 95% heat transmittance
  • 24-karat Gold Back Coating for targeted infrared applications
  • White Ceramic Reflective Back Coating for extreme temperature requirements
  • High power densities: 42.0 - 51.0 - 63.5 w/in2 (16.5 - 20.0 - 25.0 w/cm2)
  • Fast heat-up rates - Less than one minute to reach steady state conditions
  • Very long operating life - Over 10,000 hours of highly efficient and economical continuous operation
  • Three industry standard sizes in lengths up to 118 inches (3000 mm)

Additional Features & Specifications

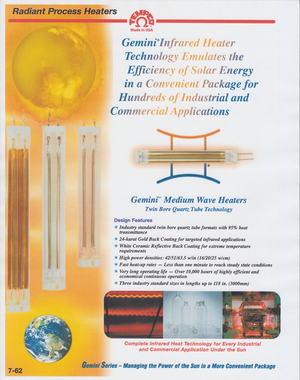

  • See reference page 7-62 for the Gemini Series Infrared Heater overview

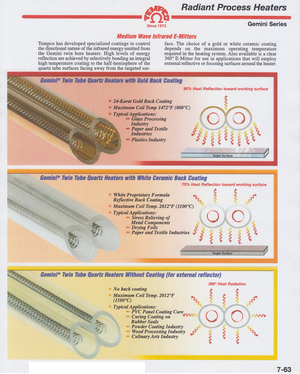

  • See reference page 7-63 for additional coatings information

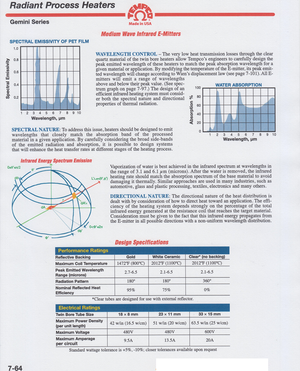

  • See reference page 7-64 for wavelength control information

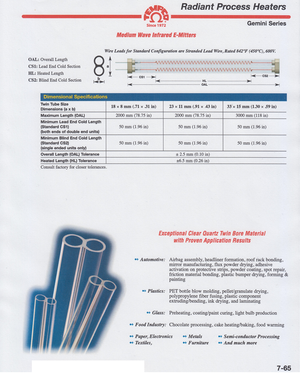

  • See reference page 7-65 Gemini Series dimensional specifications

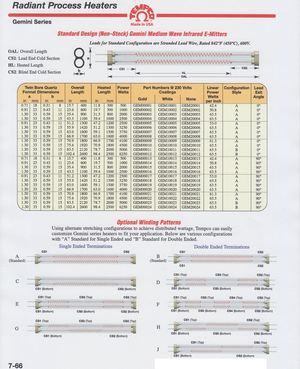

  • See reference page 7-66 for ordering information and optional winding patterns for A = Standard Single Ended Terminations and B = Standard Double Ended Terminations

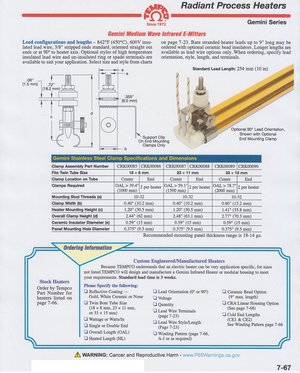

  • See reference page 7-67 for lead configurations and lengths, as well as stainless steel clamp specifications

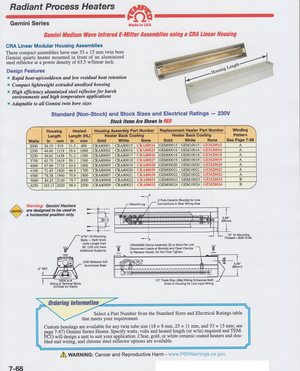

  • See reference page 7-68 for combination CRA Gemini Heater with Linear Module Housing Assembly ordering information

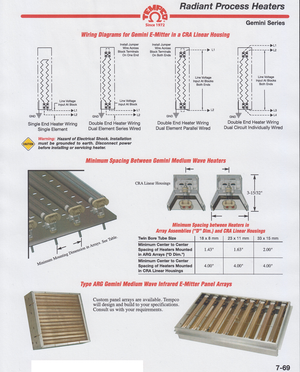

  • See reference page 7-69 for Gemini E-Mitter - CRA Linear Module Housing Assembly wiring diagrams

Proven Applications:

Automotive

  • Airbag assembly, headliner formation, roof rack bonding, mirror manufacturing, flux powder drying, adhesive activation on protective strips, powder conating, spot repair, friction material bonding, plastic bumper drying, forming, and painting.

Plastics

  • PET bottle blow molding, pellet/granulate drying, polypropylene fiber fusing, plastic component extruding/bending, ink drying, and laminating.

Glass

  • Preheating, coating/paint curing, light bulb production.

Food Industry

  • Chocolate processing, cake heating/baking, and food warming.

Additional Applications

  • Paper
  • Electronics
  • Textiles
  • Metals
  • Furniture
  • Semi-Conductor Processing
And much more!
